Impellers

Next Generation Mixing

General Purpose Mixers

Patent Pending

Patent Pending

For most applications

  • Heat Transfer and mixing
  • Emulsification
  • Crystallization
  • Coagulation/flocculation
  • Anoxic tank mixing
  • Digester/fermenter mixing
  • Chemical mixing
  • Sewage Pump Station

For tall reactors/tanks.

Patent Pending

Patent Pending

















Patent Pending

Patent Pending

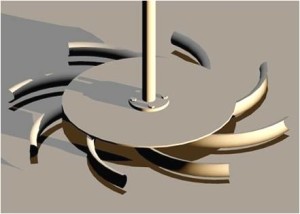

The up/down vane ends promote wider range of flow dispersion and optimize mixing performance.


 Special purpose impellers

Specifically designed for applications which have special mixing requirements.

  • Anoxic/Anaerobic Mixing: sufficient mixing for liquid-solids contact.   However, minimum liquid surface disturbance is desired because oxygenation is NOT wanted.
  • De-ice mixing: for cold water storage, strong surface disturbance is wanted while whole tank mixing might not required.
  • De-stratification mixing: focus more on vertical circulation.

Patent Pending


Lab Impeller

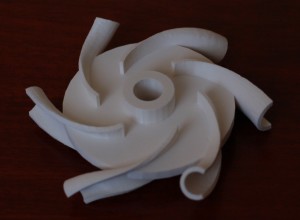

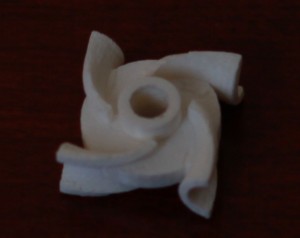

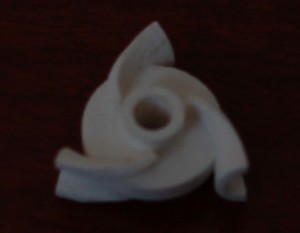

IMG_6734-1IMG_6725-1IMG_6724-1  IMG_6734-1

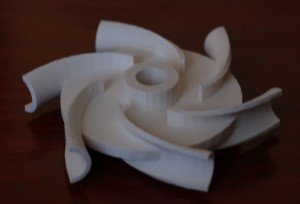

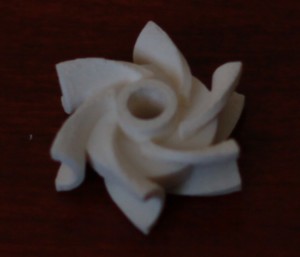

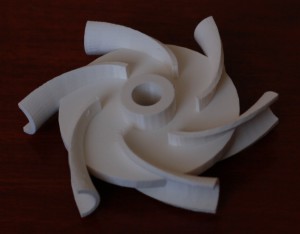

IMG_6735-1IMG_6726-1IMG_6736-1














Standard products are made of SS304.  SS304L, SS316, SS316L and other materials are available if required.  Lab impellers are made of ABS, Teflon or customized material with sizes of 1″, 2″, 3″ and 4″.

Six (6) Vanes Impellers
Model # Diameter Bore
Revol-6-4 4” 3/8” to ¾”
Revol-6-6 6” 3/8” to ¾”
Revol-6-8 8” 3/8” to ¾”
Revol-6-10 10” 3/8” to 1”
Revol-6-12 12” 3/8” to 1-1/2”
Revol-6-16 16” 5/8” to 2”
Revol-6-20 20” 5/8” to 2”
Revol-6-24 24” 1” to 2”
Eight (8) Vanes Impellers
Model # Diameter Bore
Revol-8-20 20” 5/8” to 2”
Revol-8-24 24” 1” to 2”
Revol-8-28 28” 1” to 2”
Revol-8-32 32” 1” to 2”
Revol-8-36 36” 1” to 2”
Revol-8-40 40” 1-1/2” to 2”
Revol-8-50 50” 2” to 4”
Revol-8-60 60” 2” to 4”
Ten (10) Vanes Impellers
Model # Diameter Bore
Revol-10-36 36” 5/8” to 2”
Revol-10-40 40” 1” to 2”
Revol-10-50 50” 2” to 4”
Revol-10-60 60” 2” to 4”
Revol-10-70 70” 2” to 6”
Revol-10-80 80” 4” to 8”
Customized
